GENERAL INFO

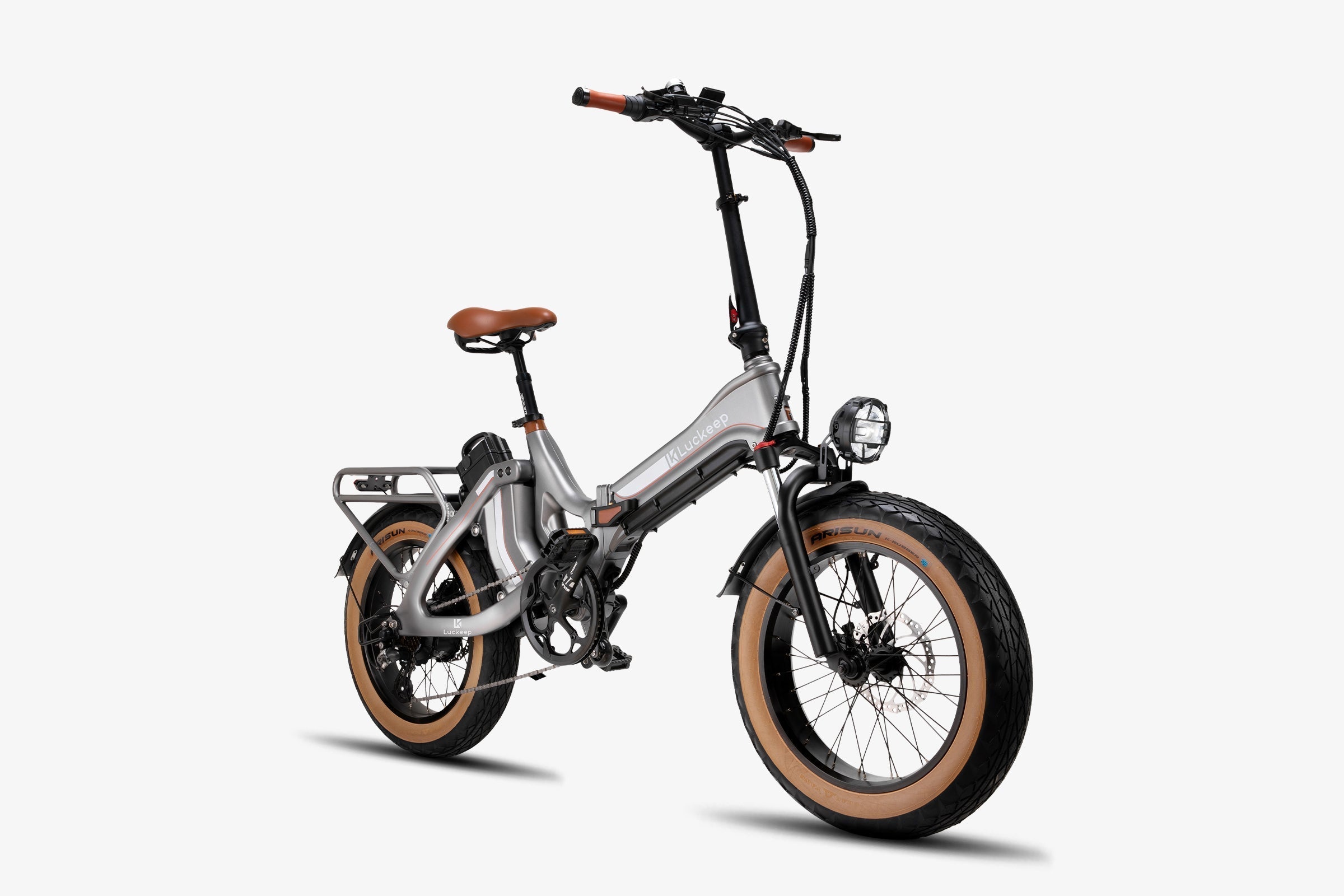

MODEL: Luckeep X1 Pro (LX 4.0) Foldable Commuter Ebike
IDEAL USE: Commuting
RANGE: 100 miles on throttle mode, 120 miles on pas mode.
SPEED: Up to 28 MPH on Throttle
WEIGHT: 81 lbs
TOTAL WEIGHT LIMIT: 440 lbs
FOLDING: Yes
RIDER HEIGHT: 5'7"-6'7"FT
PEDAL ASSIST: 5 levels
FRAMESET
FRAME: One-piece magnesium integrated
FORK: Hydraulic Shock absorbing Adjustable soft and hard
FRAME STYLE: Step-Through
WHEELSET
RIM: Aluminum 36h Front & Rear
SPOKES: Black Stainless 13G Front / 12G Rear
TUBES: Butyl Rubber, Schrader Valve
TIRES: 20*4.0 Chaoyang high-end, Fat tire
EBIKE SYSTEM
THROTTLE: Twist Throttle with Cruise Control
MOTOR: 1400w (peak), 750w (sustained), 48V Brushless Rear Hub Motor, 85Nm
DISPLAY: IPS 3.5" Smart Easy Read Display with Color screen
BATTERY: 12.8AH(614.4WH)+16AH(768WH), UL 2271, UL 2849 Compliant
SENSORS: 5 Levels Pedal Assist
CHARGER: UL 1310 Certification 48V/2A Charger, 6-7 Hour Charging Time
LIGHTS: Inclued
BRAKES: F & R Hydraulic Disc Brakes, 180mm Rotors
DRIVETRAIN
BOTTOM BRACKET: Square Taper, Sealed, Speed Sensor
PEDALS: 9/16"
REAR DERAILLEUR: 7 Speed Shimano Rear Derailleur
CASSETTE: 52 T front & rear shimano seven Speed 14-28 T
SHIFT LEVER: 7 Speed Trigger
COCKPIT
HANDLEBAR: 640mm width
SADDLE: PU foaming brown
SEATPOST: Hydraulic Shock mount tube, 31.6mm*300mm
STEM: Folding,Height Adjustable 28.6mm, 9 Degree Rise
